In compliance with U.S. safety standards: ASME B30.1
E lifting equipment used in the minimum accessible space.
Low height foot-lifting.
Able to lift both at the top and in the bottom.
Precision-oriented to avoid the hydraulic cylinder under side load.
With a reset spring for 5 tons, 10tons
| Model | Capacity | Head Capacity | Min. toe Height | Max. toe Height | Min. Head Height | Max Head Height | Packing size(mm) | Net Weight |

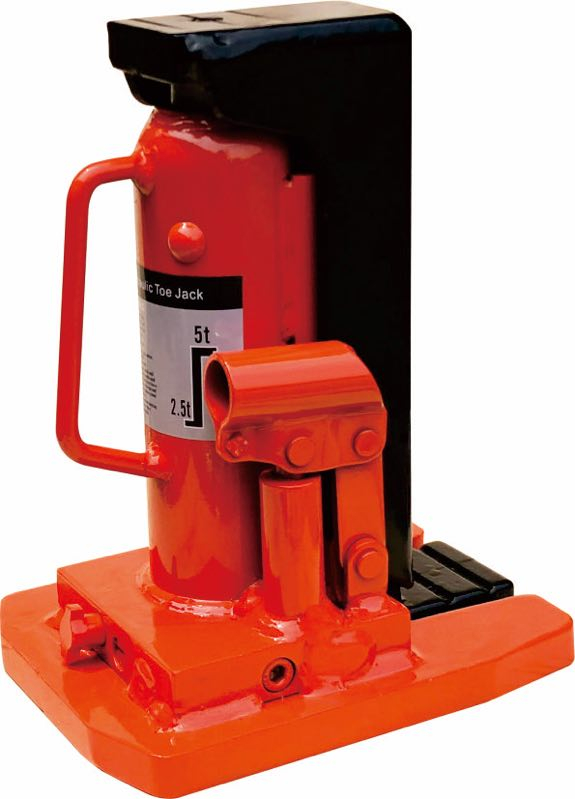

| AY1102 | 5 | 2.5 | 16 | 130 | 235 | 362 | 215*160*260 | 10 |
| AY1105 | 10 | 5 | 25 | 148 | 295 | 418 | 305*220*320 | 24 |
| AY1110 | 20 | 10 | 32 | 173 | 330 | 471 | 325*275*355 | 38 |
| AY1115 | 30 | 15 | 32 | 200 | 345 | 520 | 330*280*360 | 48 |
| AY1125 | 50 | 25 | 40 | 160 | 390 | 520 | 395*300*420 | 80 |
